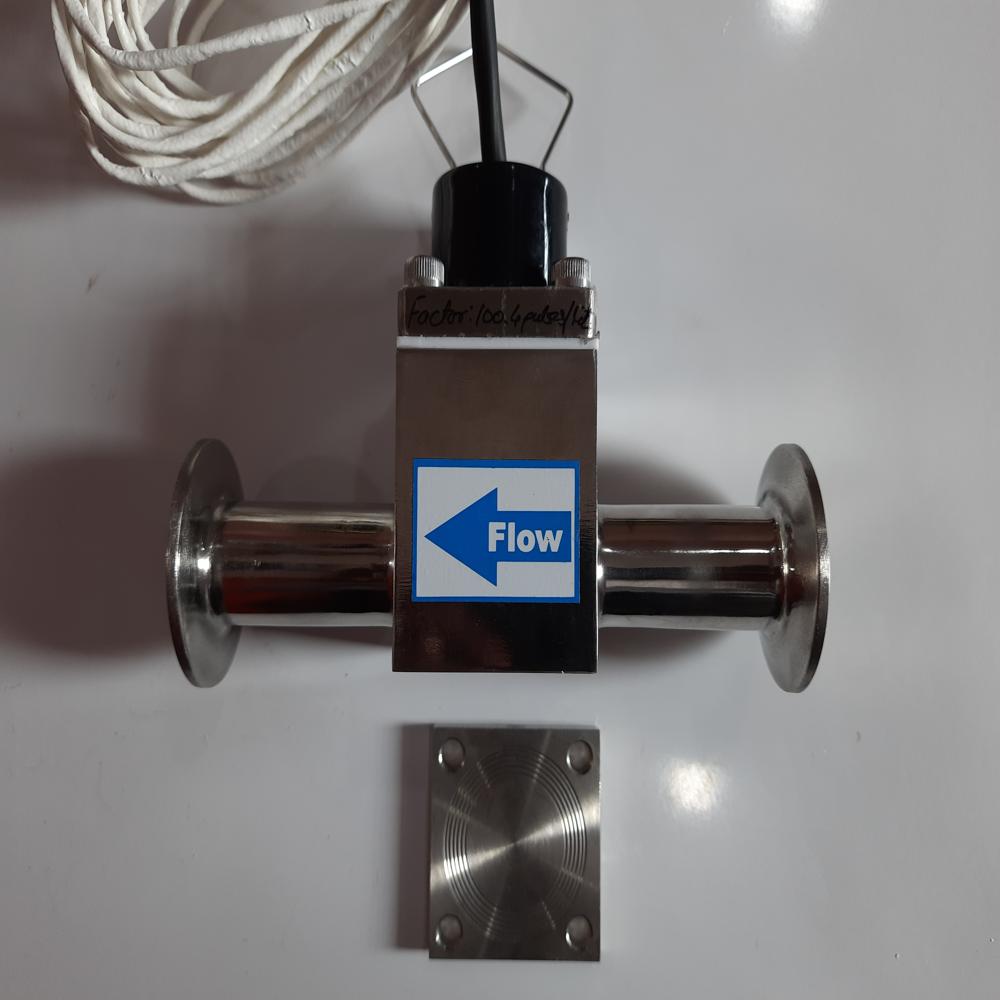

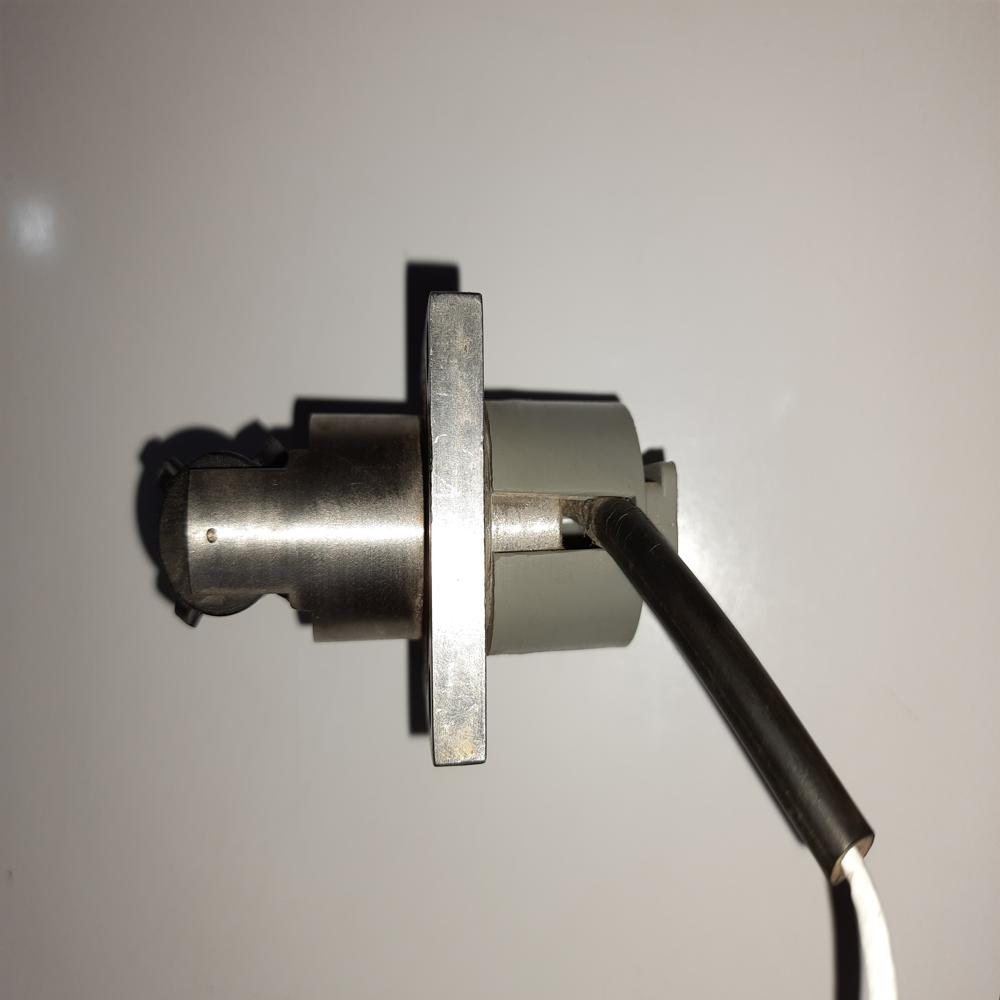

Paddle Wheal Flow Sensor

Product Description

Paddle Wheel Flow Sensor:

Types of Sensor Installation Fittings:

• Weld Block
•  S.S T Fitting with Threaded End
•  S.S T Fittings with Stud End
• S.S. T Fitting with Welded Flange
• Weld Adapter

• Water Treatment
• Filtration Systems
• Chemical / Pharmaceutical
• Bottling / Distillary
• Concrete Batching plant
• Textile / Process machine automation
• Technical Specifications:
• Flow Rate Range 0.5 to 5 m/s (1.6 to 16.4 ft./s)
• Pipe Size Range 15 NB to 300 NB (0.5 to 12 in.)
• Linearity +1% of full range
• Repeatability +0.5% of full range
• Min. Reynolds Number Required 4500
• Wetted Parts Sensor Body Polypropylene (black) or PVDF (black) SS 304 / SS 316
• O-rings Viton / PTFE
• Rotor Pin Hastelloy C
• Rotor Black PVDF
• Frequency 38 Hz per m/s nominal (11.6Hz per ft/s nominal)
• Supply voltage 10 to 24 VDC regulated
• Supply current <20 mA @ 10 to 24 VDC
• Output Type Pulse output ( NPN )
• Cable Length 5 m (16.4 ft.) Standard
• Operating Pressure
• PP: max10 bar(145 psi) @ 25oC
• PVDF: max12 bar(175 psi) @ 25oC
• Operating Temperature
• PP: 10oC to 70oC (14oF to 158oF)
• PVDF: 10oC to 100oC (14oF to 212oF)
